Iridium Certus® 200 GMDSS solution – distress , safety, and everyday connectivity in one Wheelmark approved system, with 100% global coverage.
The LT-4200S GMDSS system is an Iridium Certus 200 GMDSS Satcom System. It meets all standards and certification requirements needed for GMDSS communications equipment (MED, Wheelmark).
LT-4200S GMDSS – developed and manufactured by Lars Thrane A/S – offers Distress Alert, Safety Voice, and Maritime Safety Information (MSI) as well as Ship Security Alert System (SSAS) and Long Range Identification & Tracking (LRIT).
PERFORMANCE

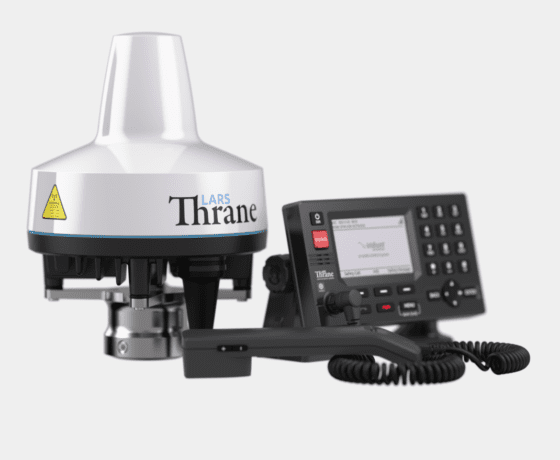

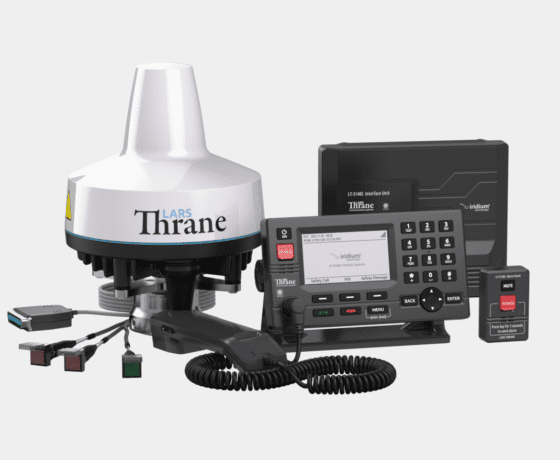

The LT-4200S GMDSS system has voice and data capabilities with 100% global coverage. The LT-4200S GMDSS system consists of a control unit, handset, and antenna unit. A single cable solution connects the control unit with the antenna unit. Using a standard coaxial cable, up to 150 meters of separation between the units can be obtained, giving freedom to mount the antenna in the best possible location, with free line of sight to the satellites.
The LT-4200S GMDSS system is designed for the Iridium Certus GMDSS Safety Services and can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity between the ship and shore. The LT-4200S GMDSS system also provides voice, IP-data, vessel tracking, and other Iridium services with competitive airtime rates, making it the perfect satellite communication product on board any vessel.
The LT-4200S GMDSS System is designed and built for the demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).
INSTALLATION

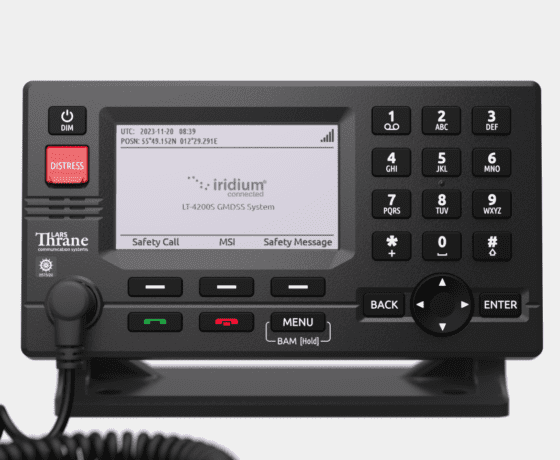

The LT-4200S GMDSS system is very easy to install. Everything is included in the box to get started with the installation and operating the LT-4200S GMDSS system. The control unit can be installed using either a bracket mount or flush mount. The antenna unit can be mounted using a pole mount for either 2.0” pipes. The control unit has a large 4.3″ TFT display, from where the system can be operated with overview and ease. The built-in webserver can be used for service and maintenance.
More than 40 years of experience have been put into the design and construction of the LT-4200S GMDSS system, with an exceptional performance and specification level.
Type-approved for GMDSS service across Sea Areas A1, A2, and A3, with MED and Wheelmark certification. The LT-4200S meets the mandatory safety requirements for compliant maritime operation worldwide.
Distress Alert and Distress Call, Safety Calling and Safety Messaging, plus Maritime Safety Information (MSI) — the complete GMDSS safety toolkit, delivered over 100% global Iridium coverage.
Integrated Ship Security Alert System (SSAS) and Long Range Identification & Tracking (LRIT) bring security alerting and position reporting into the same certified system.
Support for remote Alarm Panels, a GMDSS Printer, and Bridge Alert Management (BAM) — so the LT-4200S fits cleanly into the vessel's wider bridge and safety architecture.
Beyond safety, the LT-4200S is a full communications hub: three high-quality voice channels and IP data up to 176 kbps up/down for everyday ship-to-ship and ship-to-shore connectivity.
A single standard coaxial cable connects the control unit to the antenna — with up to 150 metres of separation — giving complete freedom to mount the antenna in the optimal location, with a clear view of the satellites.
| Control Unit | Weight: 658 g (1.45 lbs) |
|---|---|
| Handset Unit | Weight: 290 g (0.64 lbs)Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in) |

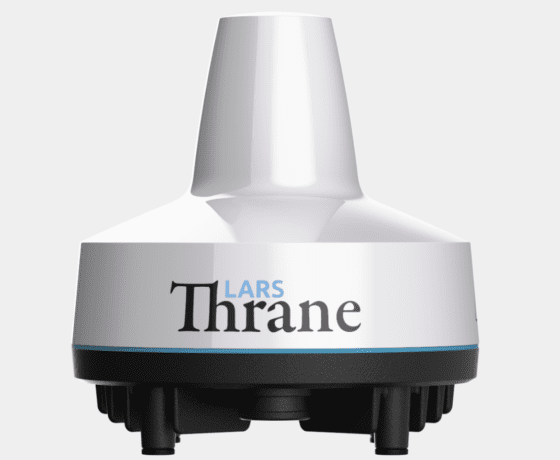

| Antenna Unit | Weight: 3.70 kg (8.16 lbs) |
